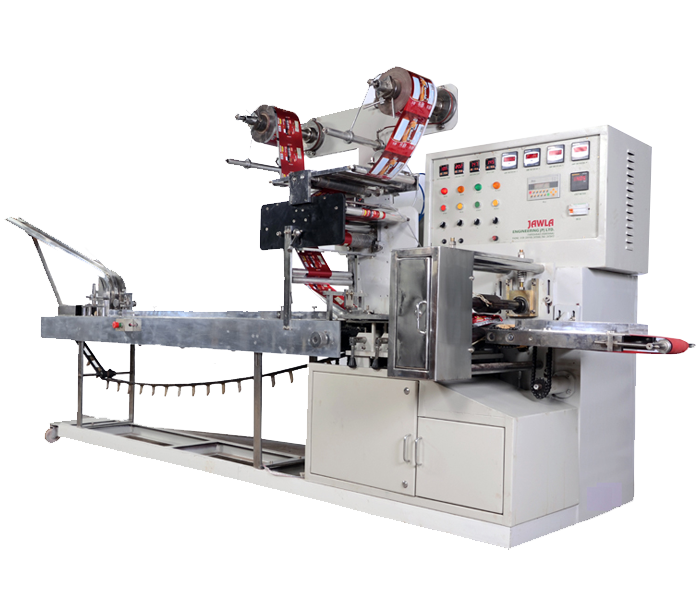

JE- 508 Horizontal Flow Wrape Pillopack High Speed Packaging Machine
Packing Products
2 or 4 biscuit specially in high speed
| Product Application | 2 or 4 biscuit specially |
| Pouch Size | To Be Confirm |
| Sealing Type | Center Seal |
| Packing Speed | 300 PPM |
| Filling System | Automatic Feeding |
| Sealing Mechanism | Continuous |
| Packaging Film | Heat Seal able laminated film in roll firm |
| Maximum Film Roll Width | 300 mm |
| Hopper Capacity | 35 kg (SS-316 Food Grade) |
| Main Body Type | Fabricated MS |
| Main Motor | 2 HP (Gear Motor-Bonfiglioli, Crompton Greaves), Single Phase |
| Mechanical Parts | EN Series |
| Main Body covers | Fabricated Powder Coated |
| All Product Contact Parts | SS made |
| Temperature Controllers | PID Based (Digital) |
| Photo Cell | Auto Colors Teach |
| Electrical Power | 3 KW |
| Machine Dimension | 180 x 60 x 60 (W x L x H In Inches) |
| Machines Weight | 1400 Kg (Approx) |
| Electrical Components | Standard Quality |
| Chain Conveyor | 8 ft long conveyor with pusher with feeding hopper |
| Safety Guard | Included |
