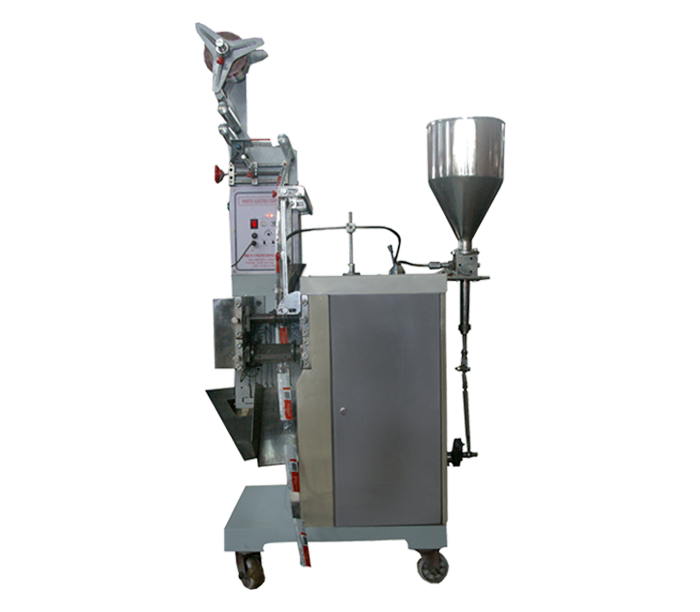

JE- 503 F.F.S Liquid Packaging Machine

Packing Products

shampoo, oils, lubricant, liquid chocolate etc

Product Application2 ML To 100 ML
Pouch SizeTo Be Confirm
Sealing Type3/4-Sided Seal, Center Seal
Packing Speed50-60 Pouches/Min
Filling SystemCup Filling System
Sealing MechanismContinuous
Packaging FilmHeat Seal able laminated film in roll firm
Maximum Film Roll Width150 mm
Hopper Capacity30 kg (SS-316 Food Grade)
Main Body TypeFabricated (MS)
Main Motor1/2 HP (Gear Motor – Bonfigliol, crompton greaves) Single Phase
Mechanical PartsEN Series
Main Body CoversMS with Powder Coated
All Product Contact PartsSS Made
Temperature ControllersPID Based (Digital)
Electrical ComponentsStandard Quality
Saftey GuardIncluded
Photo CellAuto Colors Teach
Electrical Power2 KW
Machine Dimension38 x 30 x 85 (L x W x H  In Inches)
Machines Weight700 Kg (Approx)
