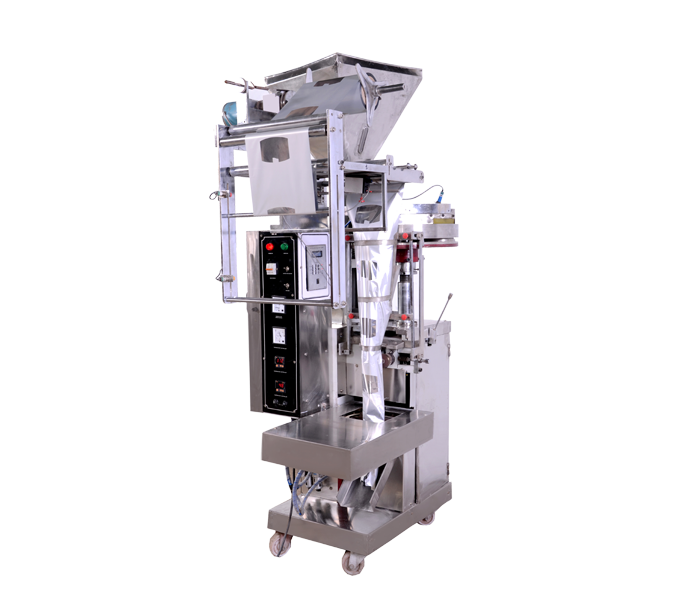

JE- 505 FFS Half Pneumatic Packaging Machine
Packing Products
Spices, Namkeen, Tea, Coffee, Heena, Powder, All granular & Detergent
| Product Application | 2 gm to 300 g |
| Pouch Size | To Be Confirm |
| Sealing Type | Center Seal |
| Packing Speed | Upto 60 PPM |
| Filling System | Cup Filling System |
| Sealing Mechanism | Intermittent |
| Packaging Film | Heat Seal able laminated film in roll firm |
| Maximum Film Roll Width | 350 mm |
| Hopper Capacity | 35 kg (SS-316 Food Grade) |
| Signals Controls | Proximity switches with cam |
| Main Body Type | MS with Powder Coated |
| Main Motor | 1/2 HP Crompton Make |
| Mechanical Parts | EN Series |
| Main Body | Fabricated Powder Coated (GMP Model) |
| All Product Contact Parts | SS-316 L |
| Temperature Controllers | PID Based (Digital) |
| Photo Cell | Auto Colors Teach |
| Electrical Power | 1 x 220 1.5 KW |
| Machine Dimension | 42 x 39 x 102 (L x W x H In Inches) |
| Machines Weight | 700 Kg (Approx) |
| Film Draw Mechanism | Clutch and Brake |
| Compressed Air Required | 5 Kg |
| Cylinders | Festo/Camozzi/SMC |
| Electrical Components | Standard Quality |
| Multihead Weigher | 2 Head,4 Head,8 Head and 16 Head etc |
| Machine Covers | Completely Enclosed |
| Batch Cutting | Assembled with Horizontal Sealer |
