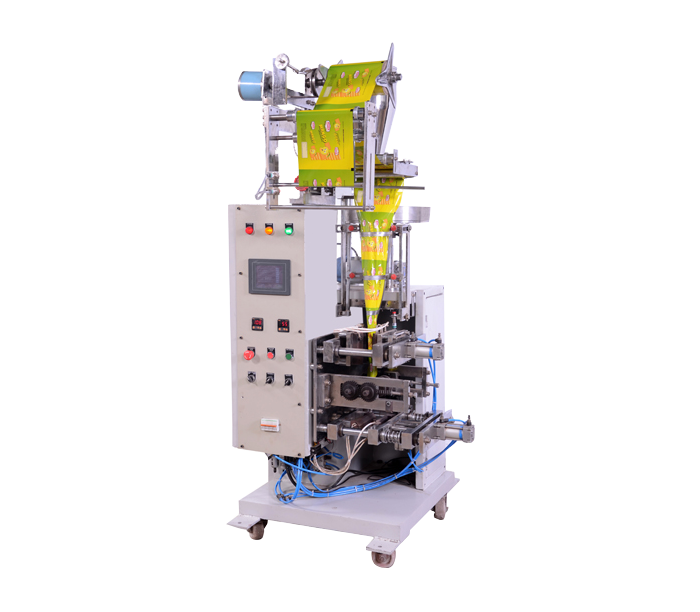

JE- 503A Four Side Packaging Machine (Two Track)
Packing Products
Powder, Oil, Shampoo, Ketchup, Past, Pickels, Liquor, Small Size Items
| Product Application | 5 gm to 200 gm (Powder or granules), 5 ML to 100 ML (Liquid) |
| Pouch Size | To Be Confirm |
| Sealing Type | 4 Side Seal |
| Packing Speed | Upto 50 Pouches/Min |
| Filling System | Piston Dosing Filling System |
| Sealing Mechanism | Intermittent |
| Packaging Film | Heat Seal able laminated film in roll firm |
| Maximum Film Roll Width | 250 mm |
| Hopper Capacity | 30 kg(SS-316 Food Grade) |
| Signals Controls | Proximity switches with cam |
| Main Body Type | Fabricated (MS) |
| Main Motor | 1/2 HP Crompton Make |
| Mechanical Parts | EN Series |
| Main Body | Fabricated Powder Coated (GMP Model) |
| All Product Contact Parts | SS-316 L |
| Temperature Controllers | PID Based (Digital) |
| Photo Cell | Auto Colors Teach |
| Electrical Power | 3 x 380 2 KW |
| Machine Dimension | 42 x 39 x 102 (L x W x H In Inches) |
| Machines Weight | 1000 Kg (Approx) |
| Film Draw Mechanism | Clutch and Brake |
| Control Panel | See through |
| Compressed Air Required | 10 CFM @ 6 Bar |
| AC Drive | L&T |
| PLC | L&T |
| Micro View | L&T |
| Cylinders | Festo/Camozzi/SMC |
| Machine Cover | Completely Enclosed |
| Batch Cutting | Assembled with Horizontal Sealer |
| Weight Adjustment | PLC Program |
